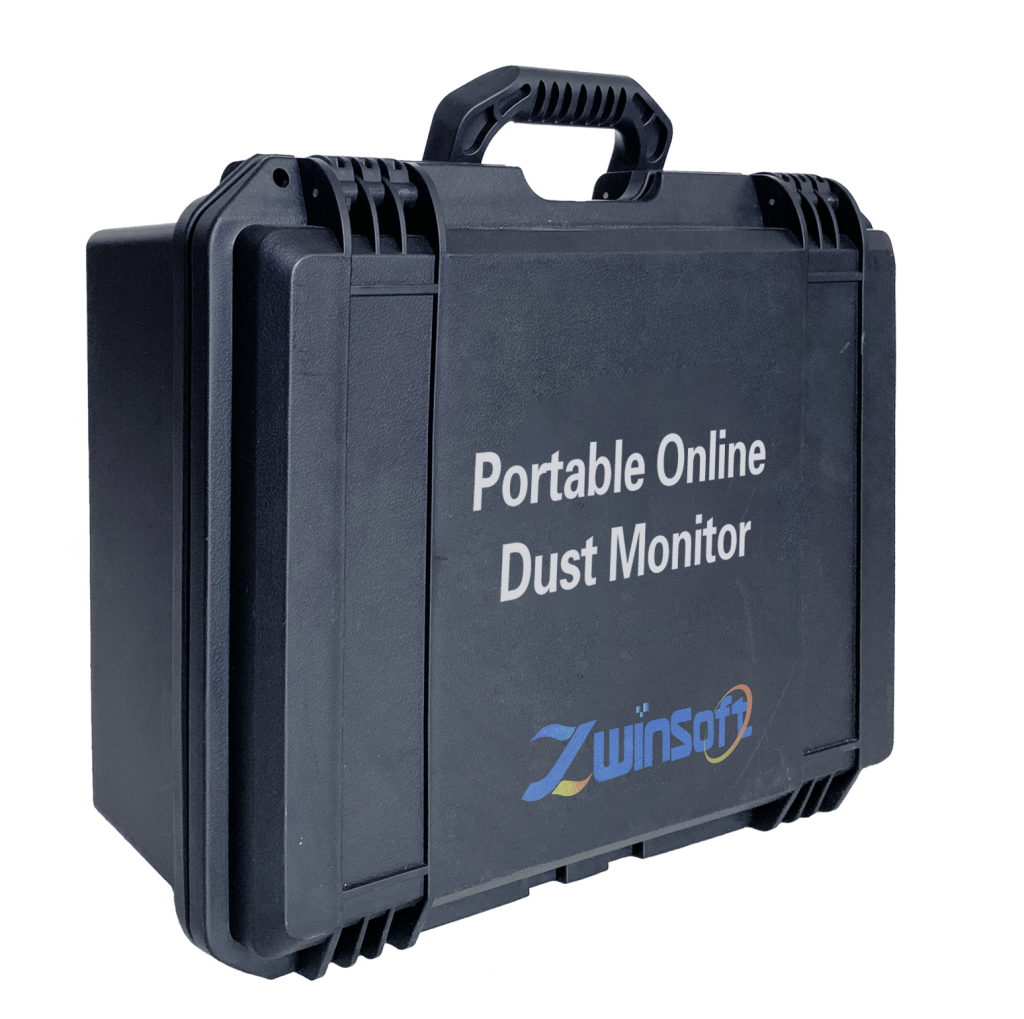

Dust monitoring device ZWIN-YCM06

DESCRIPTION

Portable Dust Detector ZWIN-YCM06 is our company’s newly launched active particle detector, a highly integrated portable one. Its main characteristics as follows: highly accurate, small in size, light weight, easy to use and adaptable for long -time outdoor operation， also can be used in indoor public places dust detection.

The ZWIN -YCM06 Portable Online Dust Detector adopts the principle of laser scattering method to detect the concentration of particulate matter （PM）. It also can be integrated with meteorological detection system, noise detection system and other multiple expansion ports that can intervene in other different detection contents. The internal structure of the instrument uses layered assembly , Only need to fix the sampling probe on the operating table to test, easy to operate .

Size

Main body box size：320*200*470mm

Main body weight：6kg

Specification

Multifunctional box

Using high impact resistance polymer plastics, integrated injection molding ,tough and compressive;

Particular sensor

Detection principle : light scattering method ; resolution ratio :0.1ug/m3;

Particular size channel :PM2.5,PM10; detection range :0~1000ug/m3;

Ambient noise sensor

Detection range:20-130dB； Sample rate:48k/s high rate sample ；

Wind speed and wind direction sensor

Wind speed(range):0-45m/s; resolution ratio :0.1m/s;

accuracy:±0.3m/s; start-up wind speed:≤0.5m/s ;

Wind direction(range):0-360ο;resolution ratio :0.1℃;

accuracy:±3℃; start-up wind speed :≤0.5m/s;

Atmospheric temperature sensor

Temperature(range):-40~120℃; resolution ratio :0.1℃; accuracy:±0.3℃;

Humidity(range):0~100%RH; resolution ratio :0.1%RH; accuracy :±2%HR;
